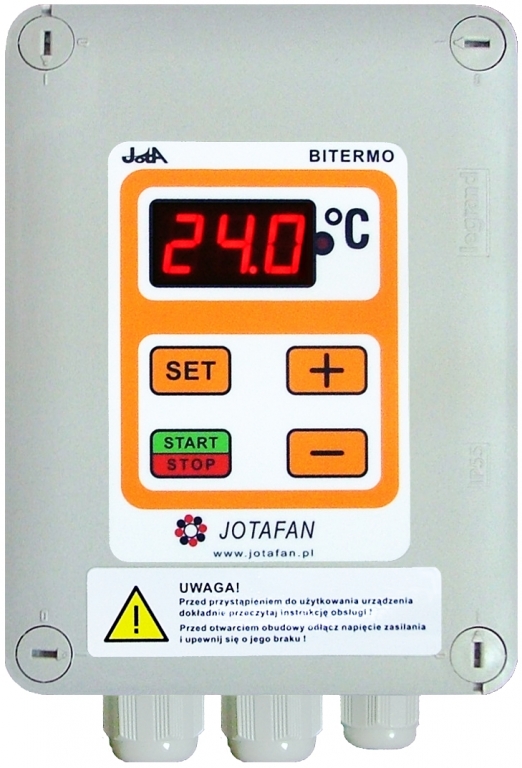

BITERMO-Pt100 controller
BITERMO-Pt100 The mode of operation and other crucial parameters of control are adjusted by means of two micro-switches located inside the controller’s housing.
The controller is suitable for interoperation with two or three terminal Pt100 resistance sensors (connection with a three-wire cable in order to minimize the resistance influence of cables on temperature indications or with a two wire cable). The controller is offered without a Pt100 sensor that must be ordered separately.

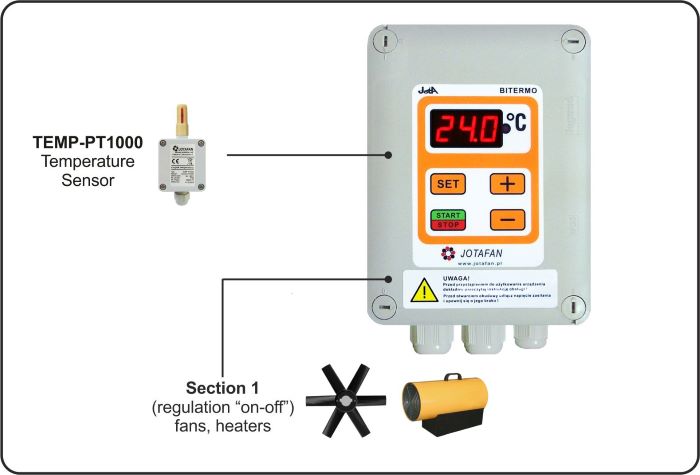

Wiring diagram of the BITERMO-Pt100 controller with sensors and modules control:
Characteristics:
- temperature measurement is made by means of the Pt100 resistance sensor,
- a built-in ‘ON/OFF’ section with a relay output, voltage-free (NO and C contacts of a relay, load current up to 3A),
- large, easy to read three-digit LED display.
Functions:
- choice of the mode of operation(ventilation/heating),
- change of the stage of section operation by means of one parameter: preset temperature,
- hysteresis width adjusted by means of settings, independently for positive and negative deviation of temperature,
- periodical ventilation: setting the cycle duration.
| Supply voltage | 230 V, 50 Hz |
| Class of anti-electric shock protection | II |
| Type and kind of control of Section 1 | Two-position: ON/OFF, (relay contacts, NO, C) |
| Load current of relay contacts of Section 1 | Imax: 3 A (230 V, 50 Hz), Imin: 10 mA |
| The fuse in the output circuit of Section 1 | Ceramic 3,15 A, 250 V (IŁ≥1500 A) |
| Range of temperature measurement | -200 ÷ 850 °C |
| Range of temperature settings | -50 ÷ 800 °C |
| Resolution of a setting and temperature measurement | 0.1°C for values from –9.9°C to 99.0°C, 1°C for other values |
| Accuracy of temperature measurement | ±0.5 °C (within the temperature operation) |
| Temperature in the immediate vicinity | 0 ÷ 40 °C |
| Ambient relative humidity | 10 ÷ 90 % (non-condensing) |
| Ingress protection class | IP 55 |
| Housing dimensions (height x width x thickness together with conduits) | 195 x 130 x 81 mm |
| Device weight (without a temperature sensor) | 0,53 kg |
| Type of a cooperating temperature sensor | Pt100 resistance sensor |
