The CCR-100 pressure sensor (differential) is designed for microclimate controllers in order to measure pressure difference (differential pressure) between the interior of the livestock building and its immediate vicinity from 0 to 100 Pa. The signal from the sensor can be used to control the opening of inlets in order to provide preset difference of pressure in the building and as a result to improve the process of exchange stale air in the optimum range.

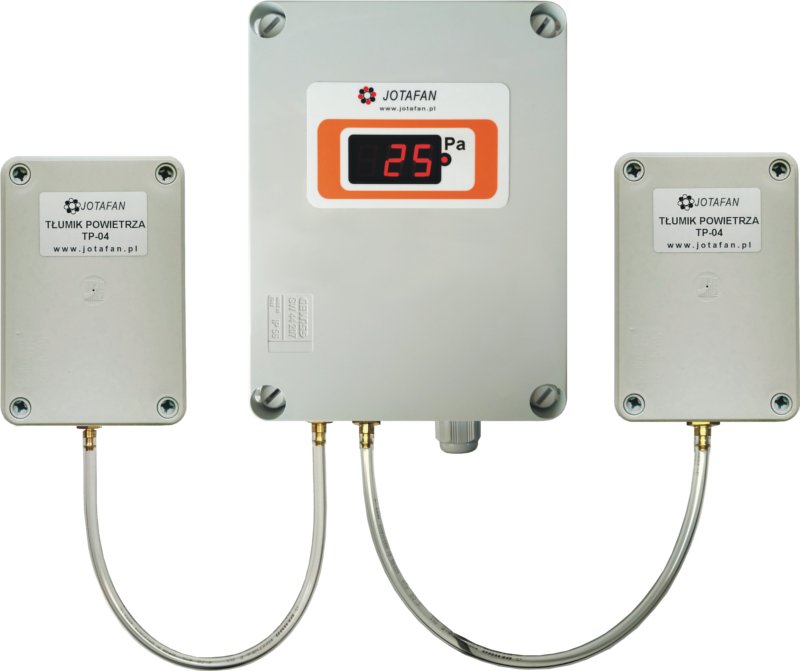

The pressure sensor can interoperate with the VIRGO controller (connection by means of a RS-485 bus) or devices of other companies by 0..10V signal. The present value of differential pressure is shown on a LED display on the front panel of an enclosure. Two TP-04 air dampers are included in the set.

Technical Data:

Supply voltage (measured at sensor’s terminals)	12..24 V DC
Power consumption	max. 10 mA ( Us = 12 V)
Range of sensor’s measurement	0 .. 100 Pa
Accuracy of measurement	±2 %; ±5 Pa
Kind of an interface	RS-485 serial bus or analogue voltage signal 0..10 V
Connection of air hoses	two hose fittings with external diameter of 4 mm
Range of operating temperature	0 ÷ 50 °C
Ambient relative humidity	0 ÷ 95 %
Ingress protection class	IP55
Housing dimensions (height. x width x thickness with conduits)	220 x 154 × 80 mm
Sensor’s weight	0,15 kg
