Homepage » Products » Alarms » Antenna » GSM 10-elements ATK 10 Antenna

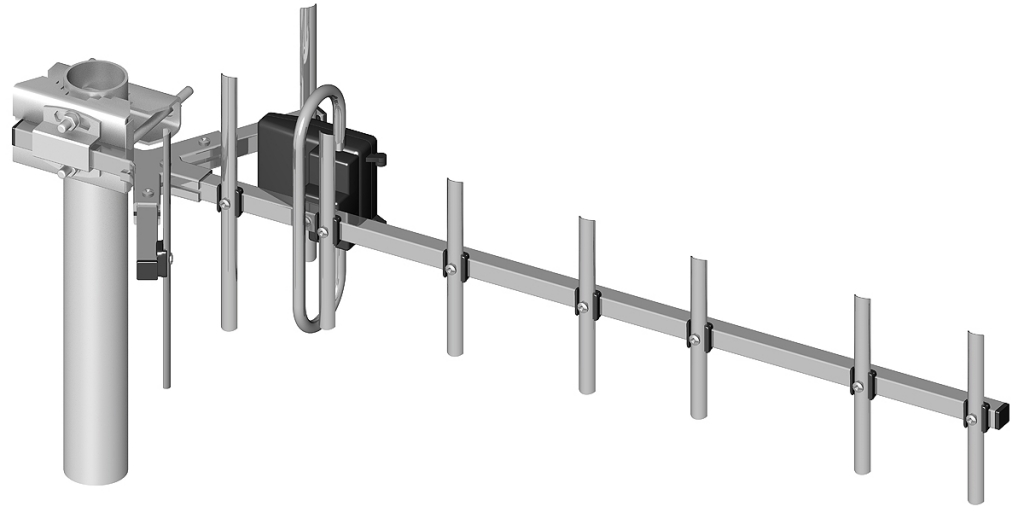

The GSM antenna with a cable and FME plugs for GSM systems, including the CA-GSM-1 alarming unit produced by our company.

Parts of the antenna are made of aluminium while steel structural components have been galvanized.

The assembly is based on mounting a reflector and it takes about a minute.

The antenna is offered without a mounting bracket. The bracket has to be bought separately.

Technical Data:

Band	800-980 MHz
Gain	12,8 dB
Beam width H [o]	50 degrees
Beam width V [o]	58 degrees
Radiation front/rear	25 dB
Polarization	V
Output impedance	50 Ω
Connection	FME plug
Number of elements	10
Length	0,53 m
Cable	10 m
Weight	0,7 kg
