Module P.S

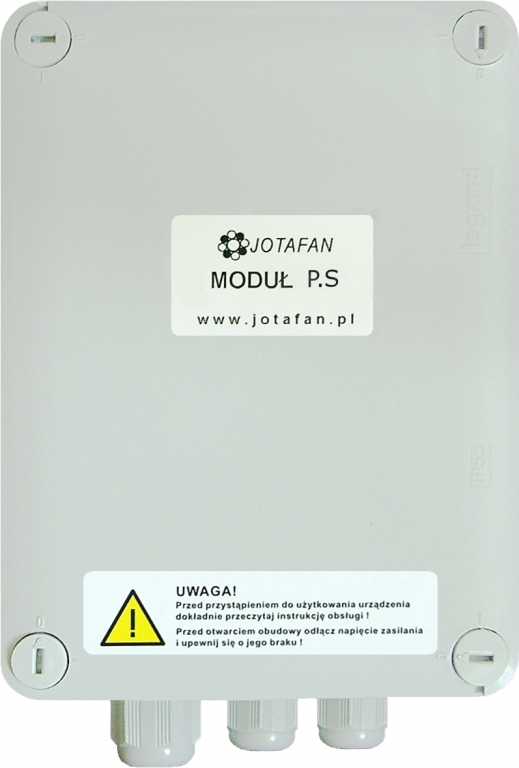

The Module P.S is a power supply (13,8..14,5V) of a solid, reliable construction used to supply an acousto-optic AS 510 signalling unit. It is equipped with an overload protection as well as additional terminal blocks that make the connection of installation easier without usage of additional connectors.
This power supply provides an output voltage control in a range of 13,8V to 14,5V. For control of operation correctness signal lamps have been used.
A housing of IP-55 and special mounting holes make an assembly easy as well as they help to keep the tightness protection.
Technical Data:| Supply voltage | 230 V, 50 Hz |
| Class of anti-electric shock protection | II |
| Output voltage | 13,8..14,5 V DC |
| Maximum output current | 0,8 A |
| The fuse in the power circuit | Ceramic 125mA, 250 V |
| Temperature in immediate vicinity of the module | 0 ÷ 40 °C |
| Ambient relative humidity | 10 ÷ 90 % (non-condensing) |
| Ingress protection class | IP55 |
| Housing dimensions (height x width x thickness) | 190 x 130 x 80 mm |
| Device weight | 1 kg |
