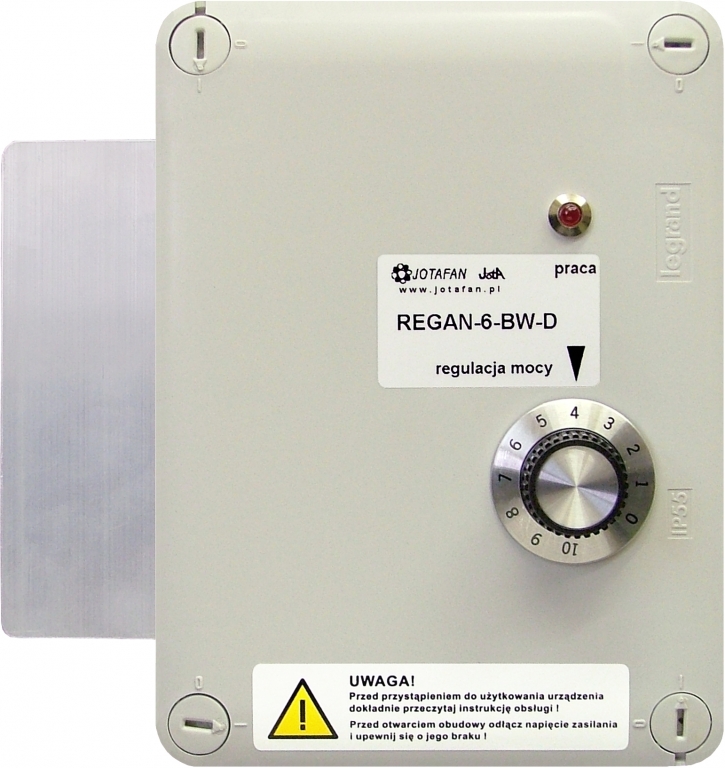

REGAN−6−BW−D  is a manual controller that controls work of fans, heaters and incandescent lighting depending on adjusted value of control by means of a scaled knob on the front panel of the housing. It has got one electronic control output with fluent power control of load from 0% to 100%.

For extension of the system the controller is equipped with an interface to interoperate with extension modules of the JOTAFAN system by means of a RS-485 port. It enables additional connection of up to 32 extension modules of the fluent section (Module 6A, Module 6A-010).

REGAN−6−BW−D has got the possibility of adjustment of one of eight minimum values of control by means of micro-switches that are situated inside the housing. It also has got a control lamp that shows the status of the controller’s operation.

This device is equipped with an anti-disturbances filter and a surge protector that are mounted directly on the printed circuit board of the device. The controller can be equipped with an alarm relay (option) that can be activated in case of incorrect work of the device, power supply failure and other emergencies.

Characteristics:

• one built-in ‘fluent’ control output that enables fluent control of single-phase fans speed or infrared electric illuminators with current up to 6A,

• RS-485 module for interoperation with other JOTAFAN devices (extension modules of the fluent section Module 6A and Module 6A-010),

• the possibility of adjustment of one of eight minimum values of control,

• power regulation by means of a scaled knob on the front panel,

• the function of complete control switch off (electronic switch).
