Homepage » Products » Poultry weighing scales » Automatic scales » The WGJ-I hanging scales pan

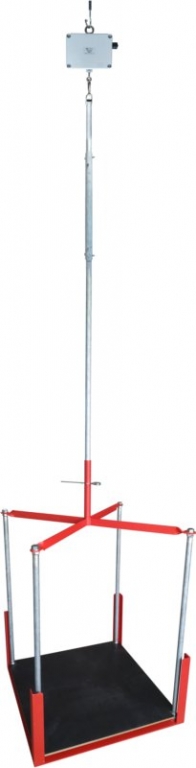

The WGJ-I hanging scales pan  is designed for weighing poultry, especially turkeys- maximum load of the scales pan is 65kg, resolution 2g.

The structure of the WGJ-I hanging scales pan has a rigid pipe sling (instead of a chain), a base limiting side movements of the pan, and a light platform, which will increase the number and accuracy of weighings, and also make it easier for the User to change the height of the pan.

Technical Data:

Measurement range	30 g ÷ 65 kg
Measurement resolution	2 g
Supply voltage	12 V DC
Ingress protection class	IP55
Housing dimensions of the weighing module without connections (length x width x height together with hooks)	268 × 233 × 80 mm
Platform dimensions	80 cm x 80 cm
Base dimensions	83 x 83 cm (height 41 cm)
