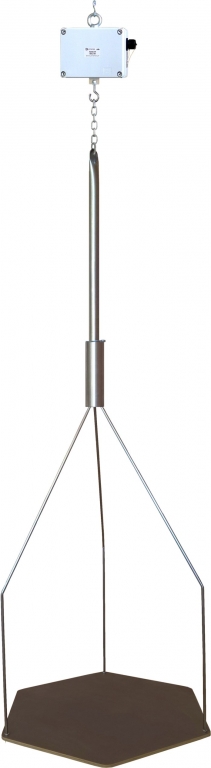

The WGJ-W hanging scales pan
The WGJ-W hanging pan is most commonly used for weighing hens (a broiler and parent flocks) and female turkeys. The scales pan is characterized by a large number of weighing acts in comparison to other types of pans. The WGJ-W scales pan construction is made of stainless steel and a waterproof plywood what guarantees long service life and easiness of cleaning and disinfection.
Technical Data:| Measurement range | 30 g ÷ 32 kg |
| Maximum total load of the weighing module | (gross): 50 kg |
| Measurement resolution 1 g | 1 g |
| Supply voltage | 12 V DC |
| Ingress protection class (of weighing module) | IP55 |
| Dimensions of the weighing module (length x width x height together with hooks, without connections) | 268× 233 × 80 mm |
| Platform dimensions (hexagon) | 70 cm (long diagonal) |
| Height | min. 220 cm (the maximum height is limited by the height of a poultry house and regulated by the chain length) |
| Weight | about 10 kg (without chain) |
